Related work: existing metadata practices in published literature and software¶
Concepts of Metadata¶
Metadata is "data that provides information about other data", but not the content of the data itself.
Types of Metadata¶
The metadata typically include three major types: descriptive metadata, structural metadata, and administrative metadata. There are also many additional types of metadata commonly used in different disciplines, including:
| Type | Purpose | Example |
|---|---|---|
| Descriptive Metadata | The descriptive information about a resource. It is used for discovery and identification. | Title, abstract, author, keywords. |
| Structural Metadata | Defines the organization and relationships within the dataset. | Chapters, sections, headings, timestamps, markers, pointers. |
| Administrative Metadata | Provides management details like ownership, access, and retention. | Resource type, and permissions, and when and how it was created. |
| Technical Metadata | Contains technical specifications such as file format, resolution, and software. | Resolution, compression, used software. |
| Legal Metadata | Specifies usage rights, licenses, and restrictions. | License, copyright, term of use. |
| Provenance Metadata | This relates to the origins and processing of the data, and enables interpretation and reuse of the data. | Origin, transformations, versioning. |
| Preservation Metadata | Ensures long-term usability and integrity of data. | File formats, migration strategies, metadata schemas. |
| Usage Metadata | Tracks how the dataset is accessed. | Download count, api requests, |
| Domain-Specific Metadata | Captures domain specialized information. | Spatial extent, temporal coverage, sensor types, statistics. |
Metadata practices in published 4D datasets¶
Near-continuous 3D obsearvations on sandy beach¶
Kijkduin¶
- Metadata source
- Kijkduin_TLS_2016-2017_meta_version_17-2-2022.pdf
- PANGAEA: https://doi.pangaea.de/10.1594/PANGAEA.934058
- 4TU.ResearchData: https://data.4tu.nl/articles/_/12692660/1
-
Metadata availability
Type Metadata Format Descriptive Metadata Title, abstract, author, keywords PDF, web Structural Metadata Timestamps, file naming, file overview PDF Administrative Metadata Funding, organizations, projects PDF, web Technical Metadata Resolution, software, compression PDF Legal Metadata License Web Provenance Metadata Processing steps, transformation matrix (Global and time-alignment) TXT Preservation Metadata Scripts for conversions TXT, .py,.m,.lasUsage Metadata Views, citations, downloads Web Domain-Specific Metadata Spatial and temporal coverage, geolocation, auxiliary data TXT, web, XLSX -
Structural metadata
. ├── 01_auxilary/ │ ├── Documentation/ │ │ ├── DataSheet_VZ-2000_2017-06-07.pdf │ │ ├── Whitepaper_LASextrabytes_implementation_in-RIEGLSoftware_2017-12-04.pdf │ │ └── Kijkduin_TLS_2016-2017_meta_version_17-2-2022.pdf │ ├── scripts/ │ │ ├── Kijkduin_Global_Transformation.txt │ │ ├── lasheader.las │ │ ├── LASread.m │ │ ├── LASwrite.m │ │ ├── laszip-cli.linux.txt │ │ ├── laszip-cli.windows.txt │ │ ├── pointcloud_processing_functions.m │ │ └── pointcloud_processing_functions.py │ ├── Auxiliary_data/ │ │ ├── align_plains_kijkduin_lcs.txt │ │ ├── KIJKDUIN_reference_measurements_19-2-2017(RDNAP-version 2008).txt │ │ ├── KIJKDUIN_reference_measurements_24-2-2017(RDNAP-version 2008).txt │ │ ├── Waterlevel_Scheveningen.xlsx │ │ ├── Wave-data_Europlatform.xlsx │ │ ├── Wave-data_ljmuiden.xlsx │ │ └── Weather-data_Hoek_van_Holland.xlsx │ └── Global_transformation_matrix/ │ └── Kijkduin_Global_Transformation.txt └── 02_data/ └── YYMMDD.zip/ ├── YYMMDD_HHMMSS.laz ├── YYMMDD_HHMMSS_incl.txt ├── YYMMDD_HHMMSS_meta.txt └── YYMMDD_HHMMSS_trafomat.txt
Noordwijk¶
- Metadata source
- Noordwijk_PLS_2019-2022_meta.pdf
-
4TU.ResearchData: https://data.4tu.nl/datasets/1aac46fb-7900-4d4c-a099-d2ce354811d2/2
-
Metadata availability
Type Metadata Format Descriptive Metadata Title, abstract, author, keywords PDF, web Structural Metadata Timestamps, file naming, file overview PDF Administrative Metadata Funding, organizations, projects PDF, web Technical Metadata Resolution, software, compression PDF Legal Metadata License Web Provenance Metadata Processing steps, transformation matrix (Global and time-alignment) TXT Preservation Metadata Scripts for conversions TXT, .py,.m,.lasUsage Metadata Views, citations, downloads Web Domain-Specific Metadata Spatial and temporal coverage, geolocation, auxiliary data TXT, web, XLSX -
Structural meatadata
. ├── DataSheet_VZ-2000_2017-06-07.pdf ├── Noordwijk_PLS_2019-2022_meta.pdf ├── Whitepaper_LASextrabytes_implementation_in-RIEGLSoftware_2017-12-04.pdf ├── scripts/ │ ├── lasheader.las │ ├── LASread.m │ ├── LASreadOctave.m │ ├── LASwrite.m │ ├── laszip-cli.linux.txt │ ├── laszip-cli.windows.txt │ ├── pointcloud_processing_functions.m │ ├── pointcloud_processing_functions.py │ └── read_align_point_cloud.py └── publication/ ├── _Global transformation matrix/ │ ├── Global_transformation_matrix_NW_after_2dec2020.dat │ └── Global_transformation_matrix_NW_before_2dec2020.dat └── YYMMDD/ ├── YYMMDD_HHMMSS.laz ├── YYMMDD_HHMMSS_incl.asc └── YYMMDD_HHMMSS_trafomat.txt
Multi-source 3D observations¶
Pielach River¶
- Metadata source
- TUWien re3data: https://researchdata.tuwien.ac.at/records/taz19-r6618
- Integrated readme.txt
-
Metadata availability
Type Metadata Format Descriptive Metadata Title, abstract, author, keywords TXT, web Structural Metadata Structure of subfolders TXT Administrative Metadata Funding, organizations, projects TXT, web Technical Metadata Resolution, software, file formats TXT Legal Metadata License Web Provenance Metadata Processing steps TXT Preservation Metadata Usage Metadata Domain-Specific Metadata -
Structural metadata
. ├── 01_LiDAR_topobathy_raw .............. raw topo-bathymetric 3D LiDAR point clouds (strip-wise, geo-referenced, no refraction correction, LAZ format) ├── 02_LiDAR_topo_raw ................... raw topographic 3D LiDAR point clouds (strip-wise, geo-referenced, LAZ format) ├── 03_LiDAR_topobathy_classified ....... fully processed subset of topo-bathymetric 3D LiDAR point cloud (geo-referenced, refraction-corrected, classified, LAZ format) ├── 04_LiDAR_topo_classified ............ fully processed subset of topographic 3D LiDAR point cloud (geo-referenced, classified, LAZ format) ├── 05_water_surface_model .............. water surface grid of subset area (grid spacing: 0.5m, GeoTiff format) ├── 06_control_points.................... Ground control points and saddle-roof control surfaces (ASCII format) ├── 07_underwater_reference_targets ..... Underwater reference points (ASCII format) ├── 08_underwater_transect_points........ Underwater river cross sectionpoints (ASCII format) ├── 09_images_nadir_oblique ............. Image flight block (nadir and oblique images, JPEG format) ├── 10_image_sequences_nadir ............ Selected (stereo) image sequences (multiple images taken from the same spot, JPEG format) ├── 11_synch_images_oblique.............. Selected synchronized oblique stereo images(JPEG format) └── readme.txt........................... Metadata documentation
Metadata practices in satellite image time series (SITS)¶
-
Landsat (USGS)
- Data download link
- Example Dataset: LC08_L1TP_123032_20231005_20231012_01_T1 (Landsat 8 Collection 2 Level-1, acquired on October 5, 2023) Metadata Breakdown (LC08_L1TP_123032_20231005_20231012_01_T1_MTL.txt):
- Temporal: Radiometric Calibration: Geometric:
-
Sentinel (ESA/Copernicus)
- Open Access Hub
- Data products format
- Example Dataset: S2B_MSIL2A_20231005T032214_N0509_R018_T48UYU_20231005T062456.SAFE (Sentinel-2B L2A, acquired on October 5, 2023, Tile 48UYU).
Metadata Breakdown (MTD_MSIL2A.xml):
S2B_MSIL2A_20231005T032214_N0509_R018_T48UYU_20231005T062456.SAFE/ ├── MTD_MSIL2A.xml # Main metadata file ├── AUX_DATA/ # Auxiliary data ├── GRANULE/ │ └── L2A_T48UYU_A030050_20231005T032214/ │ ├── MTD_TL.xml # Tile-specific metadata │ ├── IMG_DATA/ │ │ ├── R10m/ # 10m resolution bands (B02, B03, B04, B08) │ │ └── R20m/ # 20m resolution bands (B05, B11, etc.) │ └── QI_DATA/ # Quality masks (CLD, SNW, etc.) └── HTML/ # Preview images - Temporal:
- Geometric:
The STAC catalogue¶
SpatioTemporal Asset Catalog (STAC) specification provides a common structure for describing and cataloging spatiotemporal assets. STAC Catalog manages multi-temporal data by organizing it hierarchically (by time, space, or subject). e.g. Example page
catalog/
├── year=2023/
│ ├── month=10/
│ │ ├── day=05/
│ │ │ └── sentinel-2-item.json
│ │ └── catalog.json
│ └── catalog.json
└── catalog.json
- STAC Catalog
- is a simple, flexible JSON file of links that provides a structure to organize and browse STAC Items. A series of best practices helps make recommendations for creating real world STAC Catalogs.
- STAC Collection
- is an extension of the STAC Catalog with additional information such as the spatial and temporal extents, license, keywords, providers, etc that describe STAC Items that fall within the Collection.
- STAC Item
- is the core atomic unit, representing a single spatiotemporal asset as a GeoJSON feature plus datetime and links.
- Item Metadata:
- core item metadata
- spatiotemporal information and the ID of the collection to which the item belongs.
- access through attributes on the PySTAC Item instance.
- common metadata
- include licensing and instrument information, descriptions of datetime ranges, and some other common fields.
- STAC extension
- providing additional metadata not covered by the core STAC Spec.
- time series extension (deprecated)
- core item metadata
Use cases¶
-
USGS 3DEP LiDAR Point Cloud (3dep-lidar-copc) 3DEP LiDAR collections provide high-resolution topographic elevation data - 3D point clouds in COPC and derived products as Cloud Optimized GeoTiff.
- https://planetarycomputer.microsoft.com/dataset/3dep-lidar-copc
- https://www.stacindex.org/catalogs/usgs-3dep-lidar-point-cloud-copc#/?t=4
- https://www.usgs.gov/3d-elevation-program
Metadata in open-source geospatial software¶

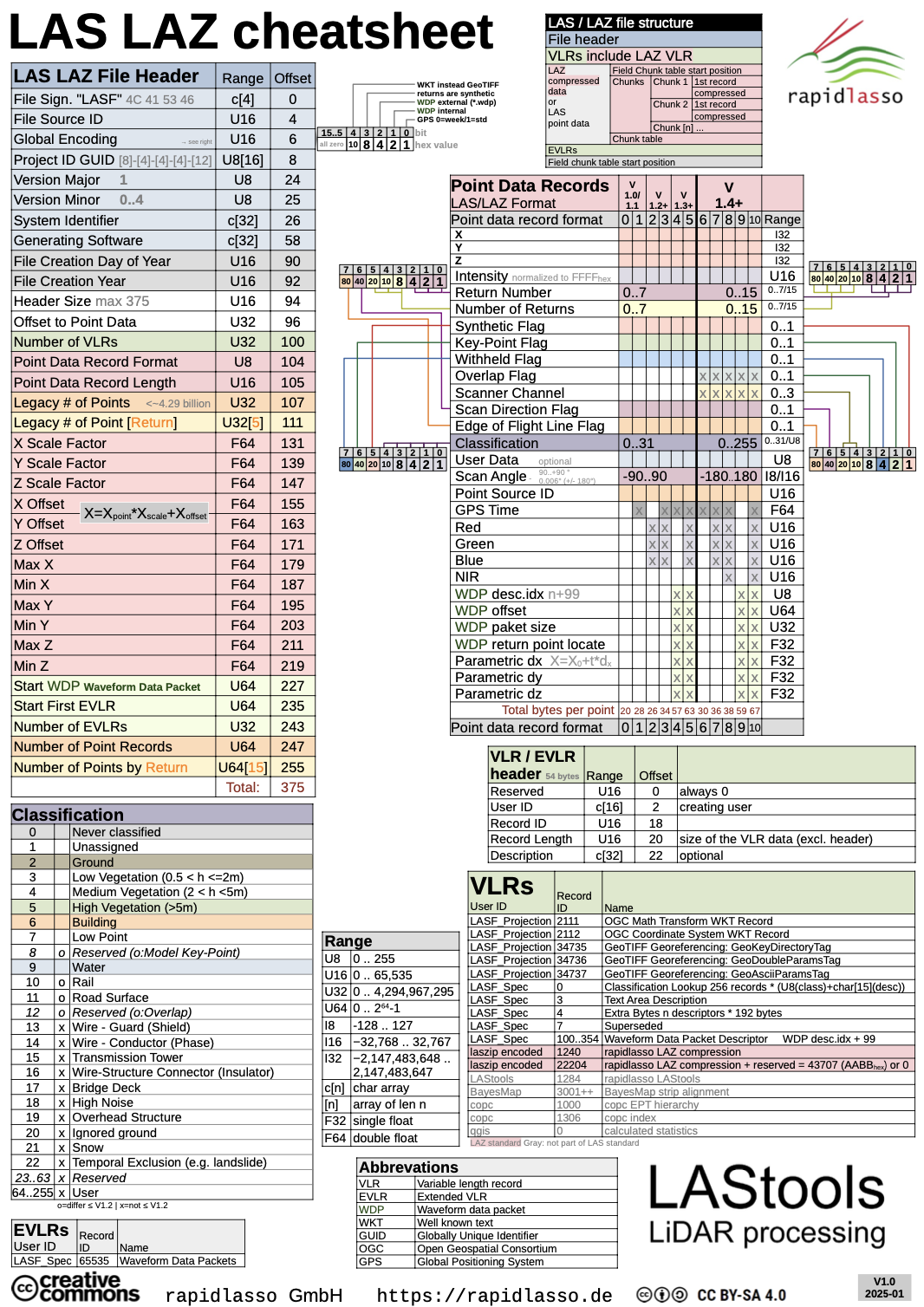

The LAS format (ASPRS):¶

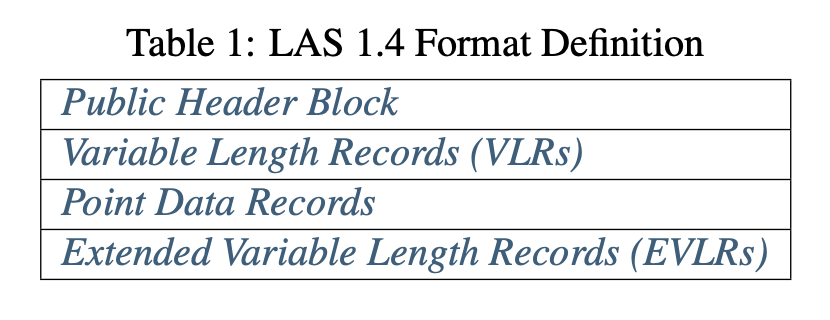

* VLRs contain the projection, metadata, waveform packet info, etc
* EVLRs can be appened at the end of the file -> info can be added without rewriting the whole file. They have a higher payload than the VLRs

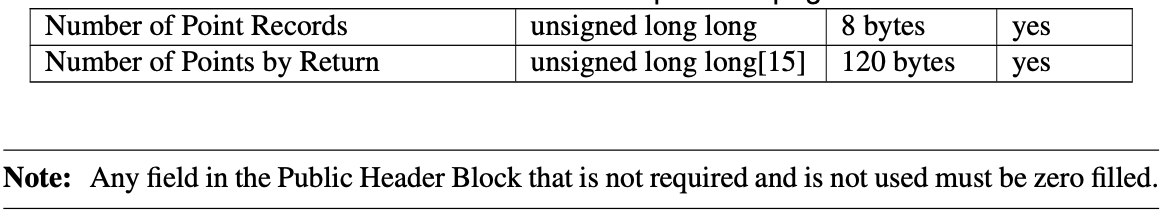

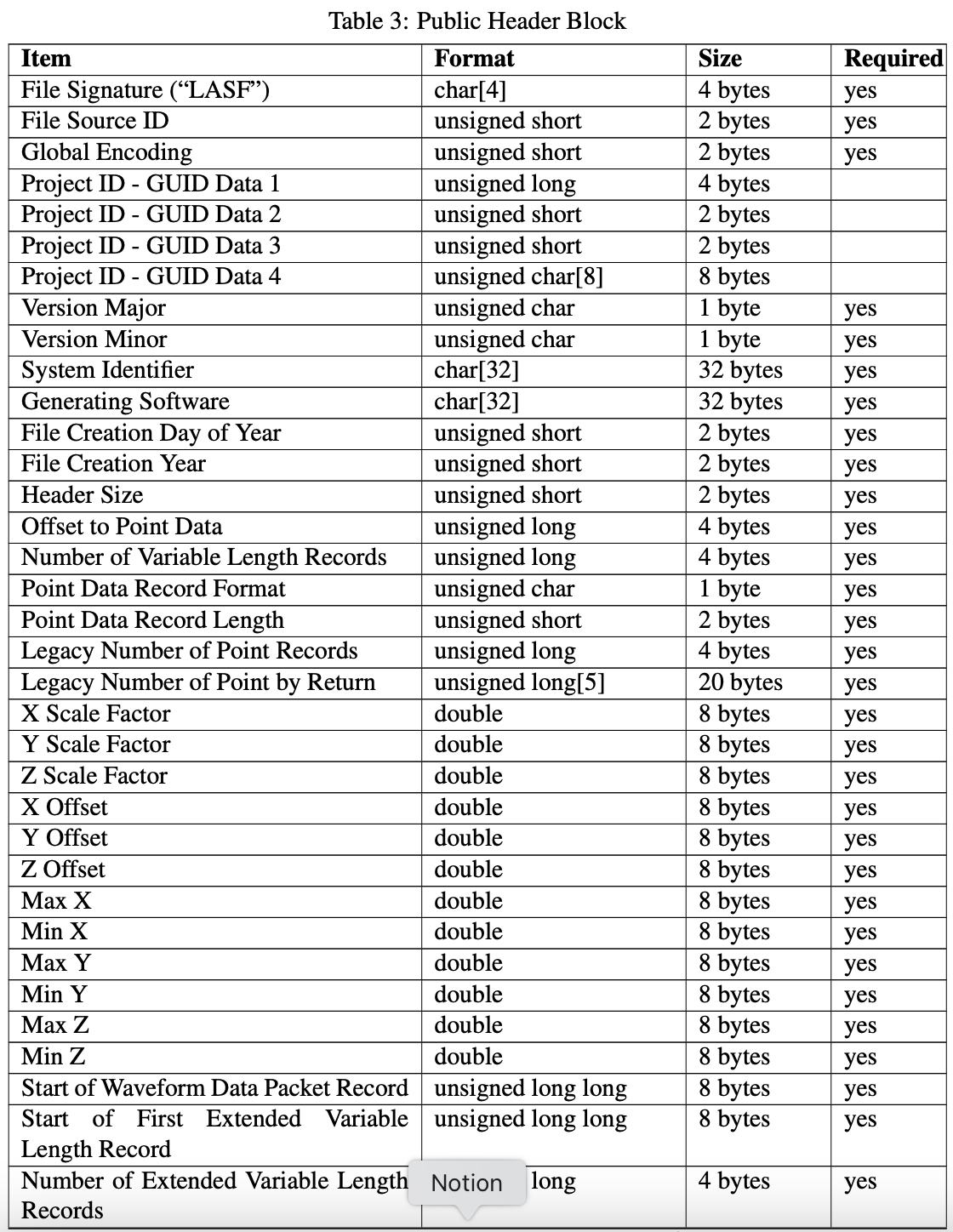

The header of a LAS file has the following info:
* LAS uses WKT (and for legacy point records formats GeoTiff) to save the CRS

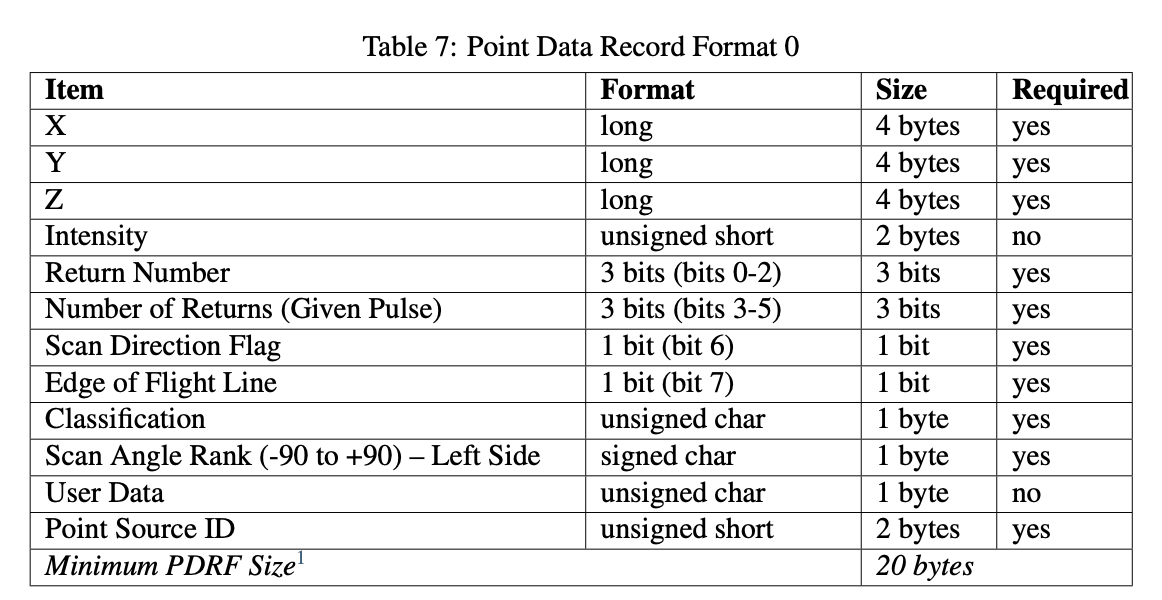

The minimum information for a point in the LAS format is the following (point data record format 0):
Other info can be recorded with the different PDRFs. Here is a recap:
A good recap of what's added in each PDRF is available here: https://laspy.readthedocs.io/en/latest/intro.html#header

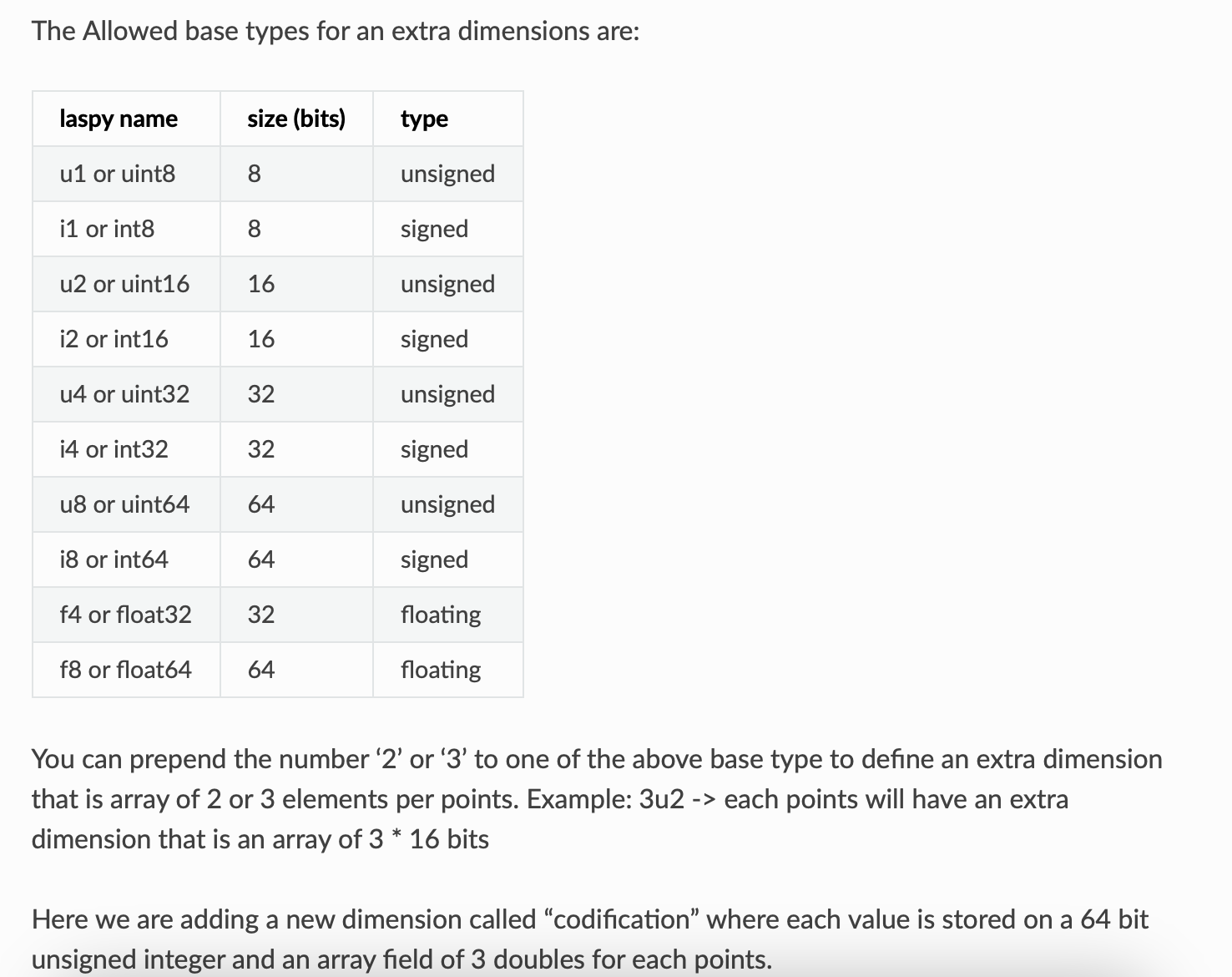

Note: attribute formats need to be defined (e.g. float32? int8? uint16? etc). -> Interesting info from pylas:
COPC¶
- COPC stores data in chunks depending on the octree
- only point info, no VLRs

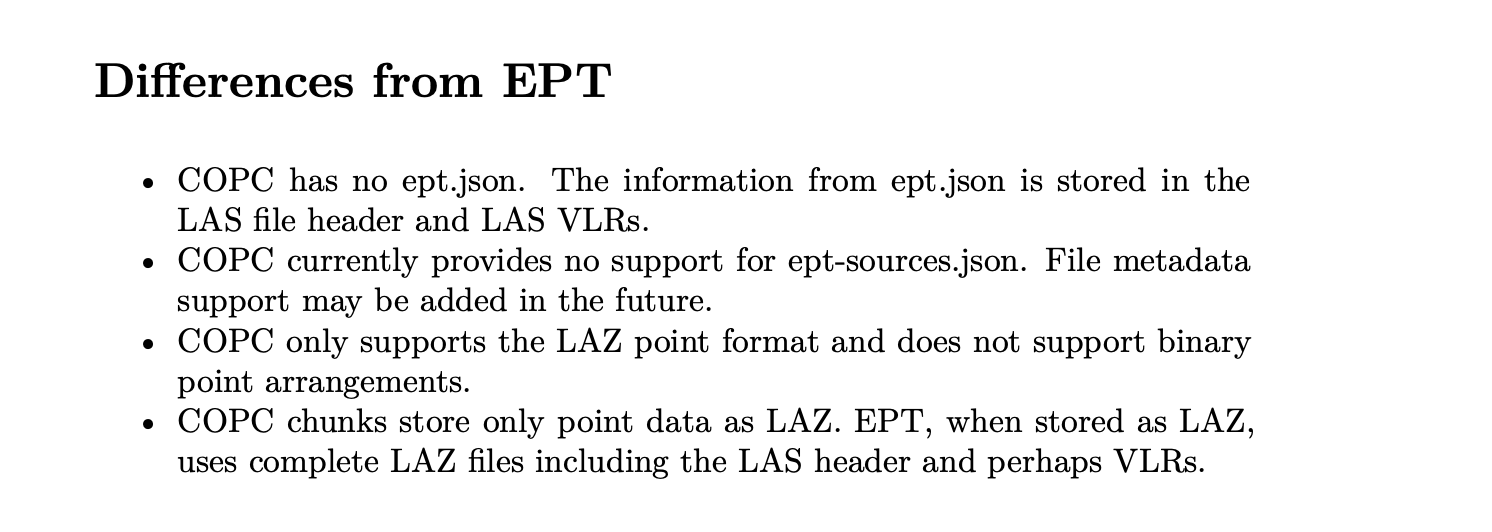

- COPC files MUST contain data with ONLY ASPRS LAS Point Data Record Format 6, 7, or 8

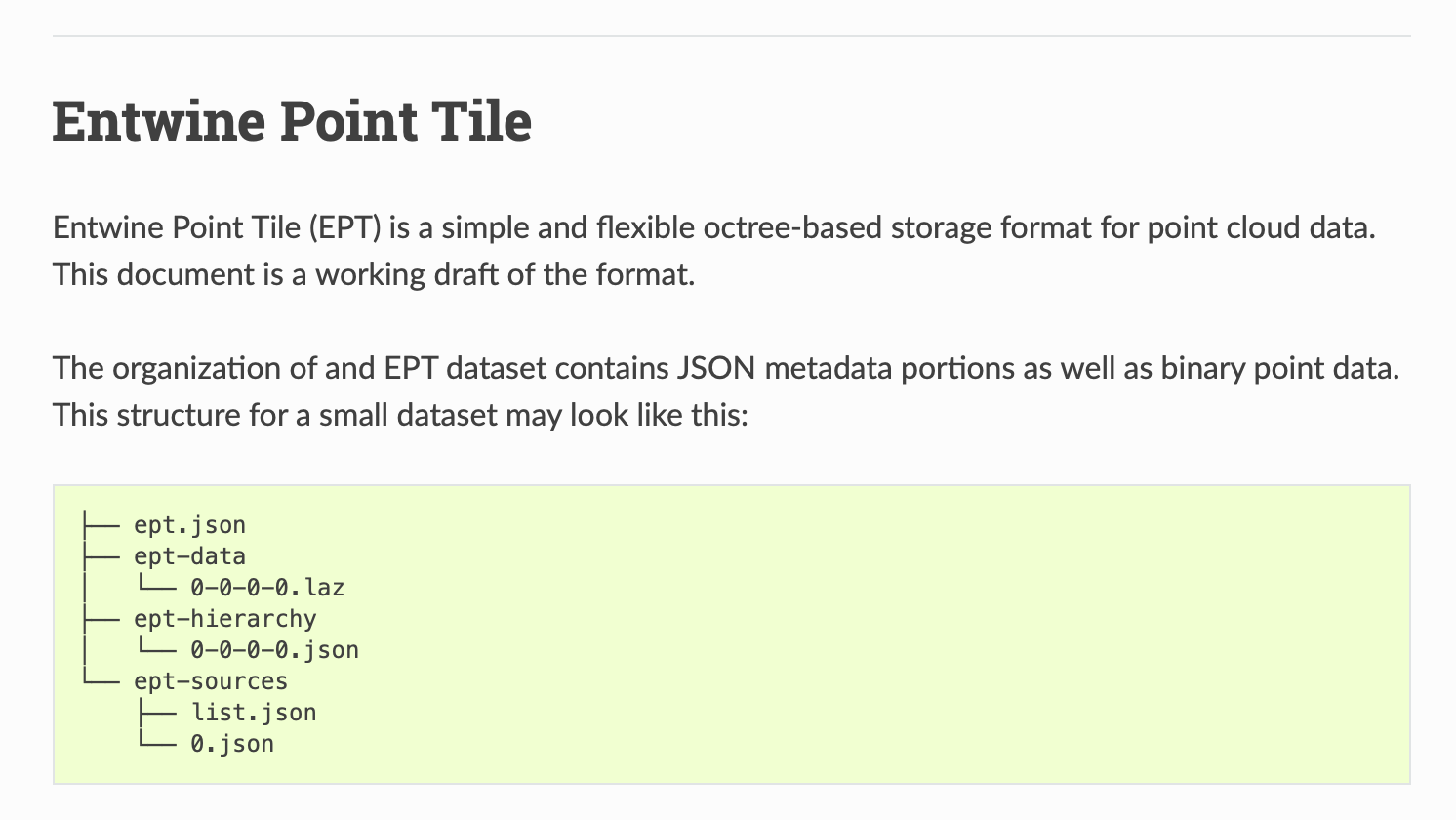

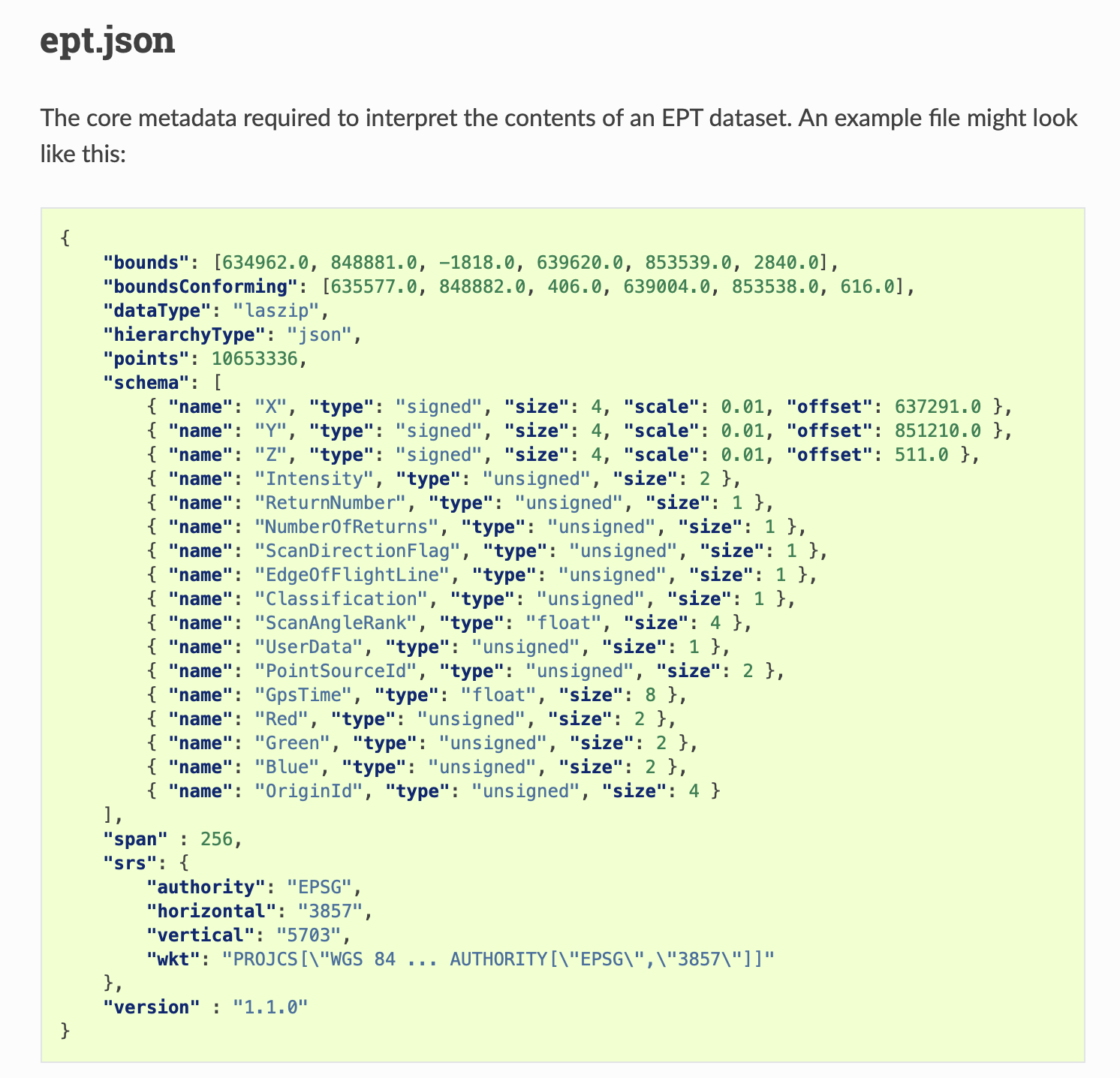

EPT¶
laspy and pylas¶
Completely based on LAS (+ copc support), so same metadata info.
py4dgeo¶
- date info
- transformation
pdal¶
QGIS¶

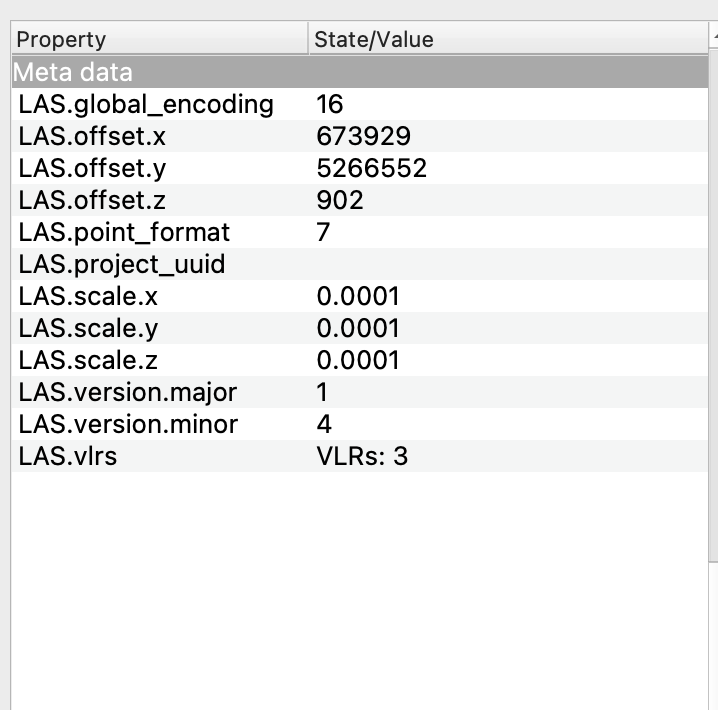

CloudCompare¶

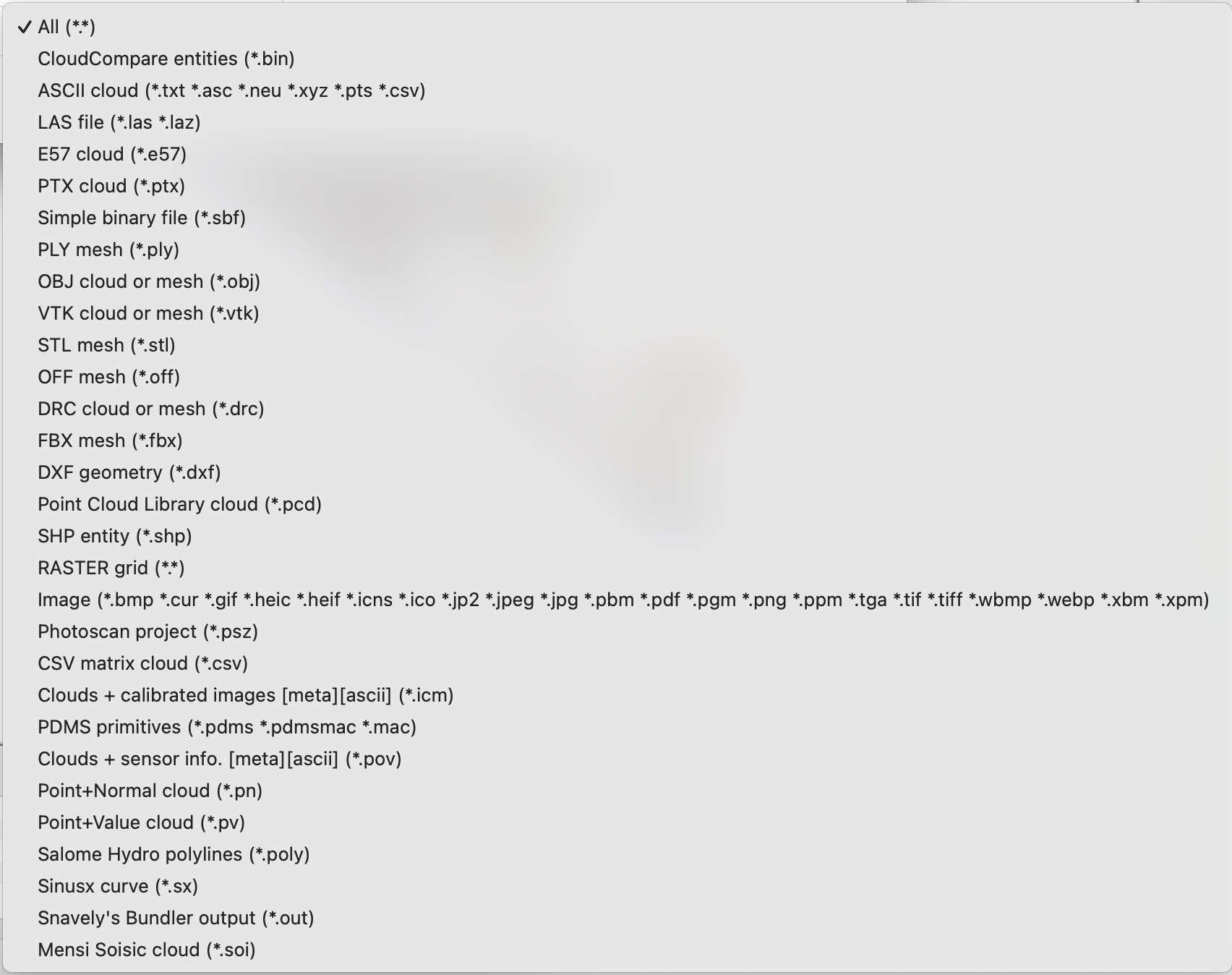

Formats supported:
Metadata:
pytreedb¶
pytreedb is a file- and object-based database for managing laser scanning and inventory data of single trees, developed in the SYSSIFOSS project by the 3DGeo Research Group of Heidelberg University and the Institute of Geography and Geoecology (IFGG) of Karlsruhe Institute of Technology (KIT).
Trees are imported from GeoJSON files which contain information on tree location, species, and tree properties, and link to one or multiple point clouds. Example copied from website:
{
"type": "Feature",
"properties": {
"id": "PicAbi_KA09_P2T2",
"species": "Picea abies",
"source": "http://syssifoss.db",
"measurements": [
{
"source": "ALS",
"date": "2019-07-05",
"canopy_condition": "leaf-on",
"height_m": 27.976,
"crown_base_height_m": 8.25,
"crown_projection_area_convex_hull_m2": 51.586,
"crown_projection_area_concave_hull_m2": 40.903,
"mean_crown_diameter_m": 8.267
},
{
"crs": "epsg:25832",
"position_xyz": [
458628.651,
5432179.5,
161.65329
]
}
],
"measurements_metadata": [
{
"reference-url": "https://doi.org/10.5194/essd-2022-39"
}
],
"data": [
{
"type": "pointcloud",
"mode": "ALS",
"date": "2019-07-05",
"canopy_condition": "leaf-on",
"sensor": "RIEGL VQ-780i",
"point_count": 5861,
"crs": "epsg:25832",
"file": "https://3dweb.geog.uni-heidelberg.de/treedb/PicAbi_KA09_P2T2_2019-07-05_q3_ALS-on.laz",
"metadata-url": "https://doi.org/10.5194/essd-2022-39",
"quality": 3
}
]
},
"geometry": {
"type": "Point",
"coordinates": [
8.433906,
49.041104,
161.65329
]
}
}
Synthesis¶
Open-source tools have little dedicated functionality to time-related variables in metadata. 4D-WORKS will extend workflows and software interfaces, which are considered in their current form to add onto existent interfaces.
Specifically, the new metadata concept may allow direct loading of 3D time series information in py4dgeo (optional parameter metadata=[json], utility function load_spatiotemporal_analysis_from_stac), and future loading/visualization/editing functionality in CloudCompare will be considered.
Metadata file formats: JSON and YAML¶
JSON (JavaScript Object Notation)¶
- Concept: An open standard file format and data interchange format that uses human-readable text to store and transmit data objects consisting of name-value pairs and arrays (or other serializable values).
- JSON is built on two structures:
- A collection of name/value pairs. In various languages, this is realized as an object, record, struct, dictionary, hash table, keyed list, or associative array.
- An ordered list of values. In most languages, this is realized as an array, vector, list, or sequence.
- Example:
{ "dataset": "Isar Dataset", "project_id": "2024-UAV-001", "acquisition_date": "2024-08-12", "sensor": { "type": "RGB Camera", "model": "DJI Phantom 4 RTK", }, "spatial_extent": { "bounding_box": { "min_lat": xxx, "max_lat": xxx, "min_lon": xxx, "max_lon": xxx }, "crs": "EPSG:4326" }, "processing": { "software": "Pix4Dmatic v1.68.1", "workflow": ["Calibration","Dense Point Cloud"], "processing_time": "x hours" }, "file_format": "JPG", "license": "CC-BY 4.0", "doi": "xxxxxx" }
YAML (Yet Another Markup Language)¶
- Concept: A human-readable data serialization language for all programming languages. It's commonly used for configuration files and in applications where data is being stored or transmitted.
- Example:
dataset: "Isar Dataset" project_id: "2024-UAV-001" acquisition_date: "2024-08-12" # Pilot: xxx sensor: type: "RGB Camera" model: "DJI Phantom 4 RTK" resolution: "xx" focal_length: "xx mm" spatial_extent: bounding_box: min_lat: xxx max_lat: xxx min_lon: xxx max_lon: xxx crs: "EPSG:4326" processing: software: "Pix4Dmatic v1.68.1" workflow: - "Calibration" - "Dense Point Cloud" processing_time: "x hours" file_format: "JPG" license: "CC-BY 4.0" doi: "xxxxxx"
HDF5 (Hierarchical Data Formats version 5)¶
Put this here temporarily, as this should be a complete file system instead of just metadata files.

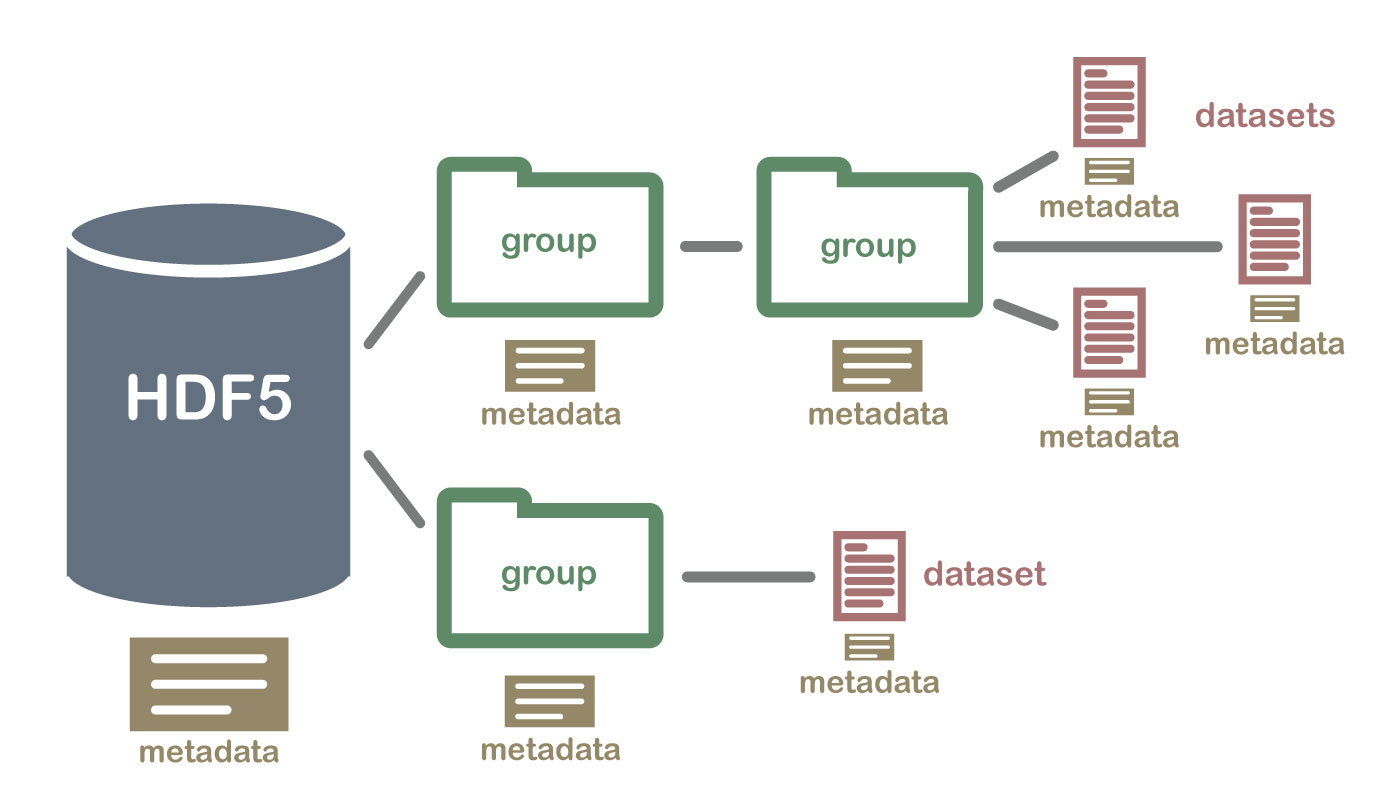

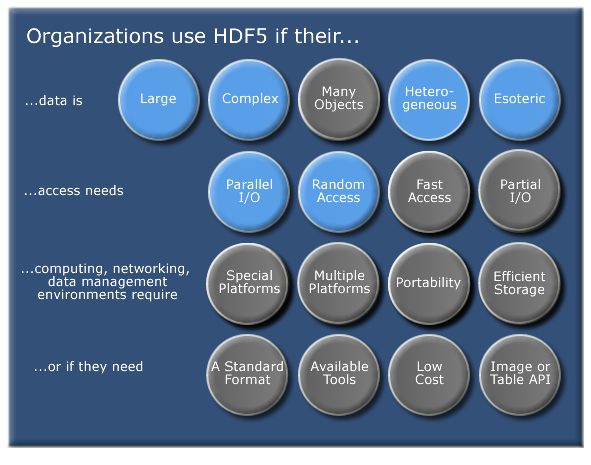

- Concept: HDF5 is an open source file format that supports large, complex, heterogeneous data. HDF5 uses a "file directory" like structure that allows you to organize data within the file in many different structured ways, as you might do with files on your computer. The HDF5 format also allows for embedding of metadata making it self-describing.
- Important terms
- Group: A folder like element within an HDF5 file that might contain other groups OR datasets within it.
- Dataset: The actual data contained within the HDF5 file. Datasets are often (but don't have to be) stored within groups in the file.
- Attribute: A small metadata object. Each file, group and dataset can have associated metadata that describes exactly what the data are.
For Metadata: JSON vs YAML vs HDF5¶
| JSON | YAML | HDF5 | |
|---|---|---|---|
| Structure | Key-value pairs, nested objects | key-value pairs, indented lists | Hierarchical, groups, datasets, attributes |
| Readability | Readable, but complex for deeply nested data | Human-readable with indentation | Not human-readable, binary format |
| Comments | No support | Support with # | No support |
| Use practice | Web-based metadata, API responses | Configuration files, workflows | Large-scale datasets, machine learning |
| Tools with Python | import json |
import yaml |
import h5py |
| Data types | Number, String, Boolean, Array, Object, null | Types for YAML | Datatype Basics HDF5 |
| For metadata | Good for structured metadata (e.g., dict-like) | Good for human-managed metadata | Good for large dataset with embedded metadata |
